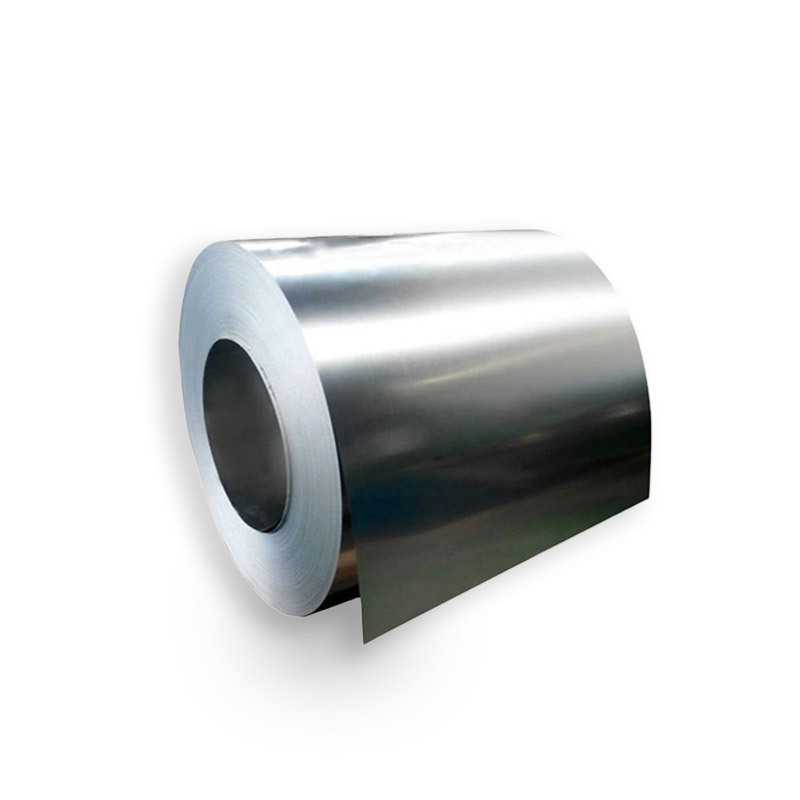

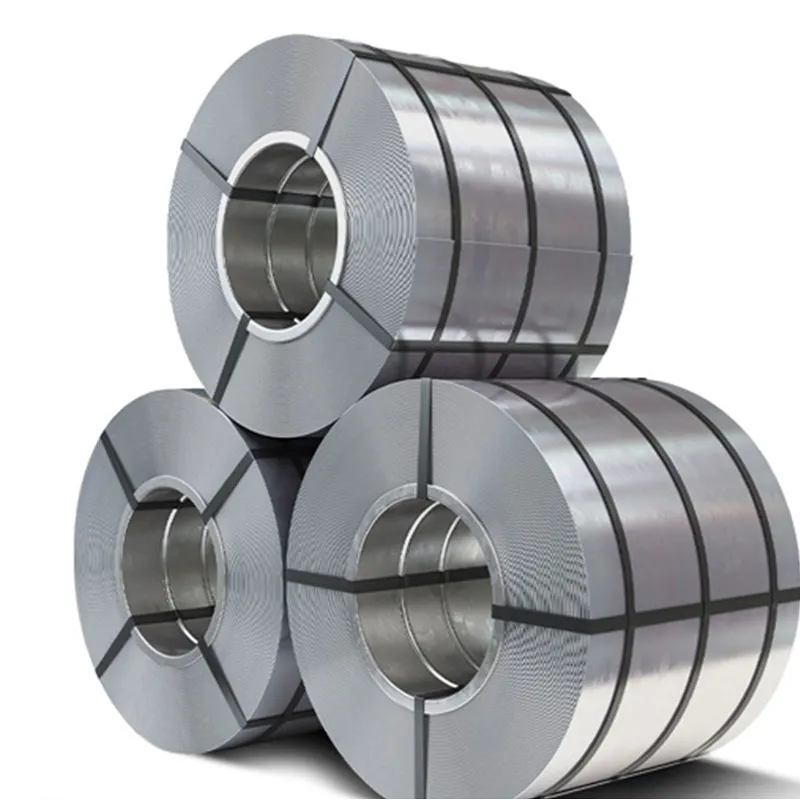

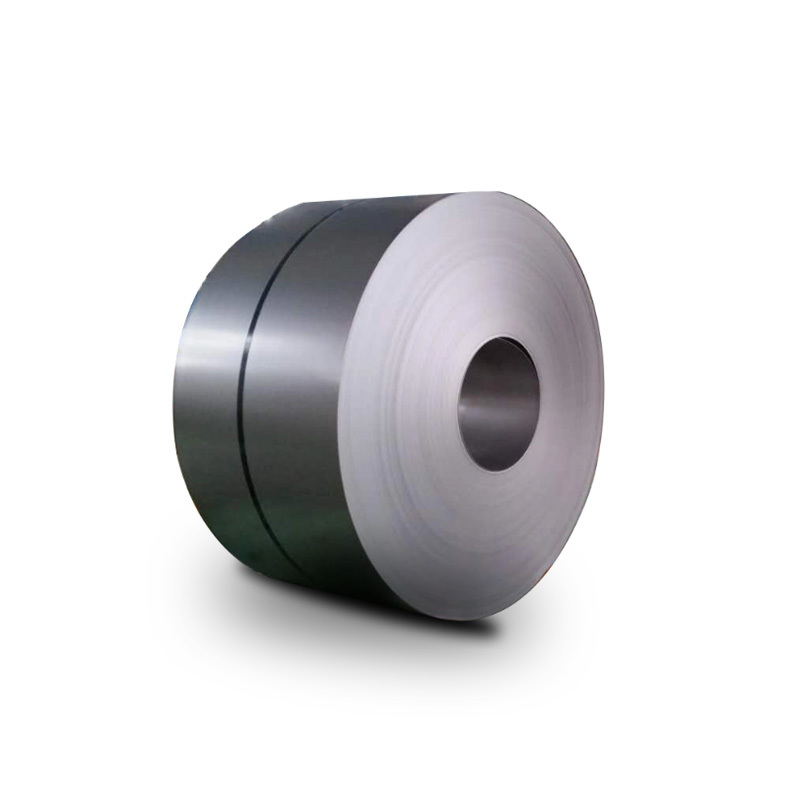

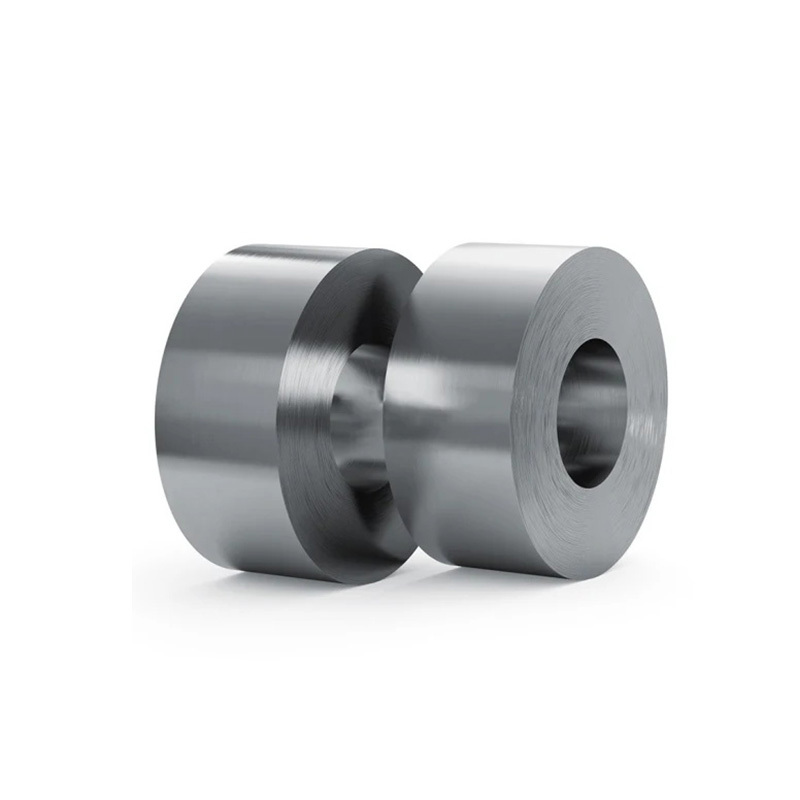

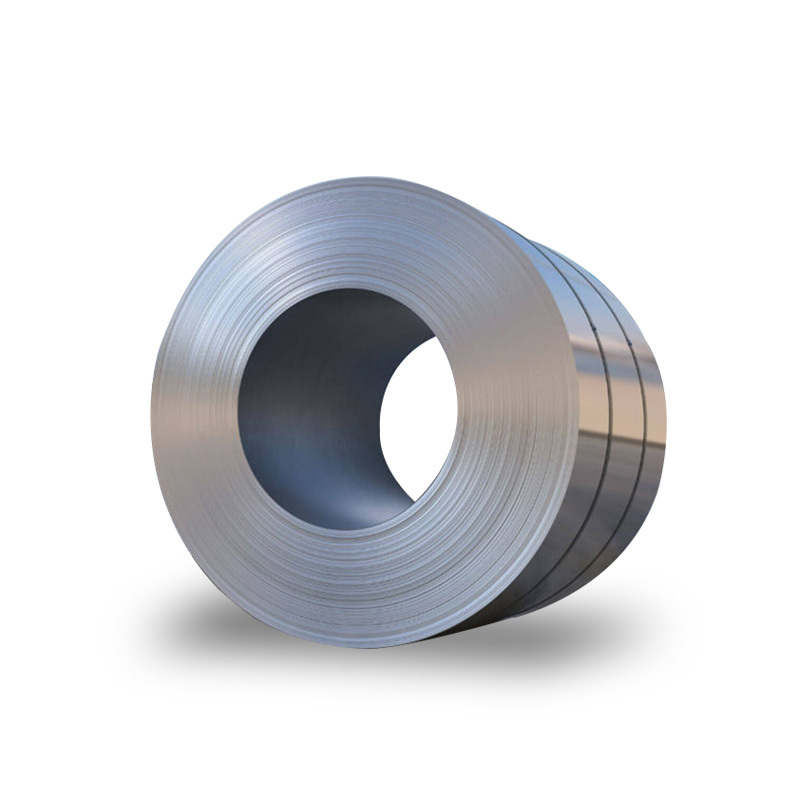

SILICON STEEL
| ITME | Thickess | Silicon Content / % |
| Silicon Steel | 0.03mm-0.65mm | 0.5-6.5 |
| Primary Use | ||
| household moto，micro-motor | ||
| Transformer | ||
| Medium and Large-sized Motors,Generator,Step-up/Step-down Transformer | ||
| Large/Medium/Small-sized Transformer,Ballast | ||
| High-frequency Motor,Magnetic Shielding | ||
Product parameters:
GRANIN ORIENTED ELECTRICAL STEEL | THICKNESS：0.23mm-0.35mm IRON LOSS：0.70KG/W-1.55KG/W MAGNETIC INDUCTION：1.85-1.90 |
STEEL GRADE：H23Q110--H35Q155,H23QK100--H35QK155,H18G080--H35G135,H20GK070--H30GK120 | |
PRODUCT APPLICATIONS: Transformers, rectifiers, reactors, large motors,etc | |
NON - ORIENTED ELECTRICAL STEEL | THICKNESS：0.20-0.65mm MINIMUM MAGNETIC POLARIZATION INTENSITY：1.61-1.72KG/W MAXIMUM SPECIFIC TOTAL LOSS:2.10-35KG/W |
STEEL GRADE：H35W230--H65W1300,H35WG230--H65WG600,H20AV1200--H30AV2100,H20AVG1200-H35AVG1900,H20AVX1200-H35AVX1700,H35AVQ500-H35AVQ600,H25AVM1300-H30AVM1500 | |
PRODUCT APPLICATIONS:Motor stator/rotor, industrial motors, transformers, etc |
